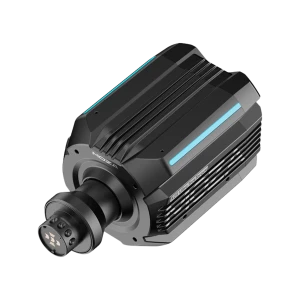

Moza R25 Ultra True Torque DD Wheelbase

25 Nm continuous torque without throttling, even during long-endurance sessions
Integrated torque sensor: 0.1% measurement accuracy, up to 2 kHz sampling rate
Cogging-free flat-wire motor: 26% higher torque density than comparable competitor products according to the manufacturer
21-bit magnetic encoder (2,097,152 PPR) for maximum steering precision

999,00 € *

Final price*, plus shipping

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

SKU:	mozar25
HAN:	RS091
Category:	Wheelbase
Manufacturers:	Moza

Description
Reviews

MOZA R25 Ultra – Direct Drive Wheelbase with 25 Nm Continuous Torque and Integrated Torque Sensor

The MOZA R25 Ultra is the current flagship wheelbase from MOZA Racing, delivering 25 Nm of continuous torque via a cogging-free flat-wire motor. For the first time in the MOZA lineup, a true torque sensor is integrated, capturing steering inputs with 0.1% measurement accuracy and up to 2 kHz sampling rate. The 21-bit magnetic encoder with 2,097,152 PPR and the new NexGen Force U1 FFB algorithm complete the package. The housing and coupling are made of die-cast aluminum; mounting is possible at the bottom, front, and sides.

Technical Specifications

Feature	Specification
Manufacturer	MOZA Racing
Model	R25 Ultra True Torque DD Wheel Base
Drive Type	Direct Drive
Motor Type	Flat-wire motor (Zero Cogging)
Max. / Continuous Torque	25 N·m
Torque Sensor	Yes; 0.1% accuracy; up to 2 kHz sampling rate
Encoder	21-bit magnetic encoder; 2,097,152 PPR
FFB Algorithm	NexGen Force U1
USB Update Rate	1,000 Hz
Rated Power	378 W
Input Voltage	110–220 V AC → 36 V DC (external power supply)
Slip Ring	Yes; > 10 million rotations; 2 MB/s
Quick Release	Yes (NRG-style, MOZA compatible)
Ports	Power, PC (USB), Pedals, Dashboard, Shifter, Handbrake, Emergency Stop
Emergency Stop Switch	Optional (not included)
RGB	2x LED strips, 16.7 million colors, telemetry feedback
Housing Material	Die-cast aluminum
Coupling Material	Aluminum
Dimensions	248.8 x 140 x 135 mm
Weight	9.1 kg
Mounting Options	Bottom, front, side
Platform	PC (Windows)
Software	MOZA Pit House (free)

Mounting

The R25 Ultra supports bottom, front, and side mounting, making it compatible with all common aluminum profile rigs and sim cockpits. For side mounting, optional MOZA accessories (adjustable bracket) are available and not included in the scope of delivery. Due to the 25 Nm continuous torque, a solid rig frame is mandatory; desk mounting is not recommended.

Comparison: R25 Ultra vs. R21 Ultra

Feature	R25 Ultra	R21 Ultra
Continuous Torque	25 N·m	21 N·m
Torque Sensor	Yes (0.1%, 2 kHz)	No
Motor Type	Flat-wire motor (Zero Cogging)	Flat-wire motor (Zero Cogging)
Encoder	21-bit (2,097,152 PPR)	21-bit (2,097,152 PPR)
FFB Algorithm	NexGen Force U1	NexGen Force U1

Scope of Delivery

1x MOZA R25 Ultra Wheelbase
Power Supply (110–220 V AC)
USB Data Cable
Screw Kit
Quick Start Guide
Warranty Card

Important Notes

Steering wheel is not included and must be purchased separately.
The Emergency Stop Switch is not included and is available as an option.
Exclusively suitable for PC (Windows). No native console support.
The iRacing 360 Hz mode is only available via MOZA Pit House after the corresponding iRacing update.
Due to the 25 Nm continuous torque, desk mounting is not recommended; a stable rig frame is required.

Item information	Value
Shipping weight:	10,00 kg
Item weight:	10,00 kg
